Description

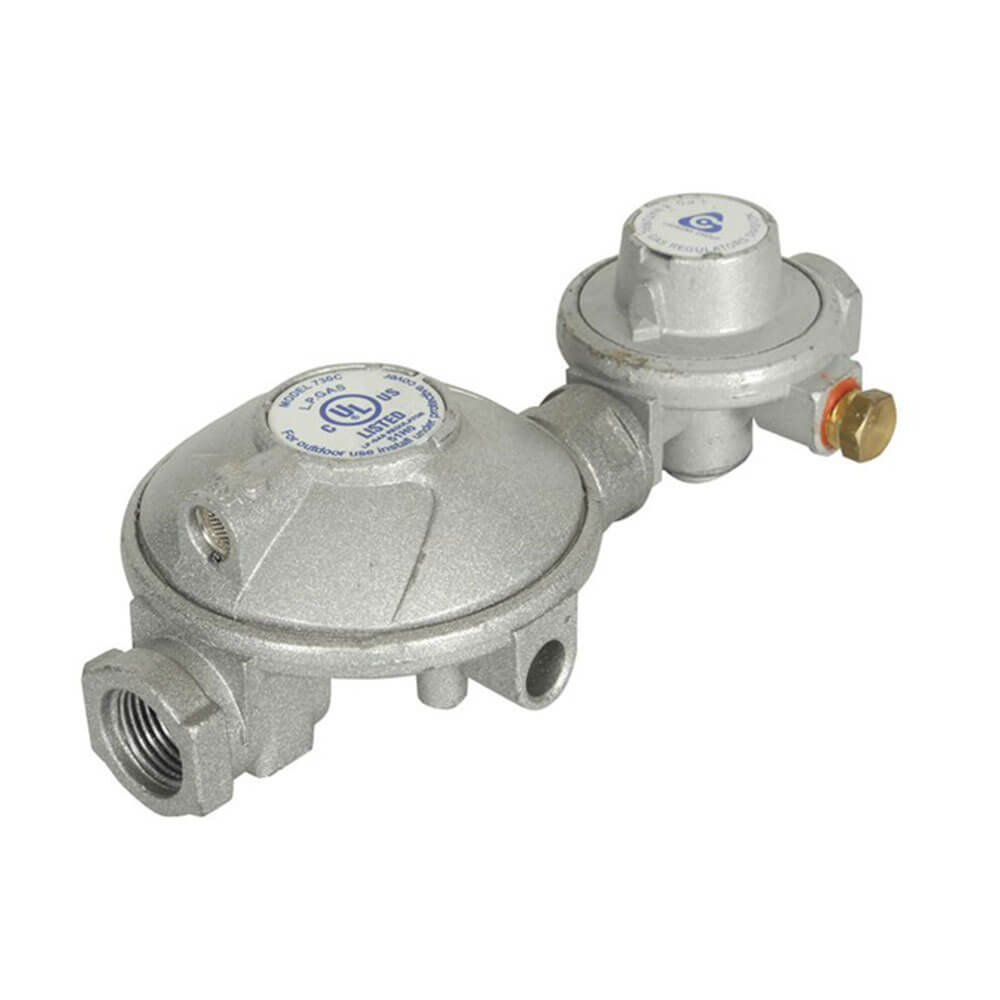

Dual stage regulator, 160mj/hour, mounting bracket and pigtail adaptor. Two-stage regulation results in a consistent inlet pressure to the second stage, thereby minimizing minor outlet pressure variations from the second stage regulator.
Product Specifications
- Mounting holes 90mm apart
- Inlet pressure 10 to 250psi
- Outlet pressure 11" WC
- Inlet 1/4 Inch FNPT
- Outlet 3/8 Inch FNPT. (connects to m-BSP-3/8)
- Capacity 210,000 BTU/hr
- Dimensions: 142mm x 83mm wide, 75mm thick (excluding bracket)
- Offset bracket adds 19mm to thickness
| Length : 16 cm | Width : 10 cm |
| Height : 9 cm |
