1W Mini Audio Amplifier Module Kit (B182)

Assembly Required

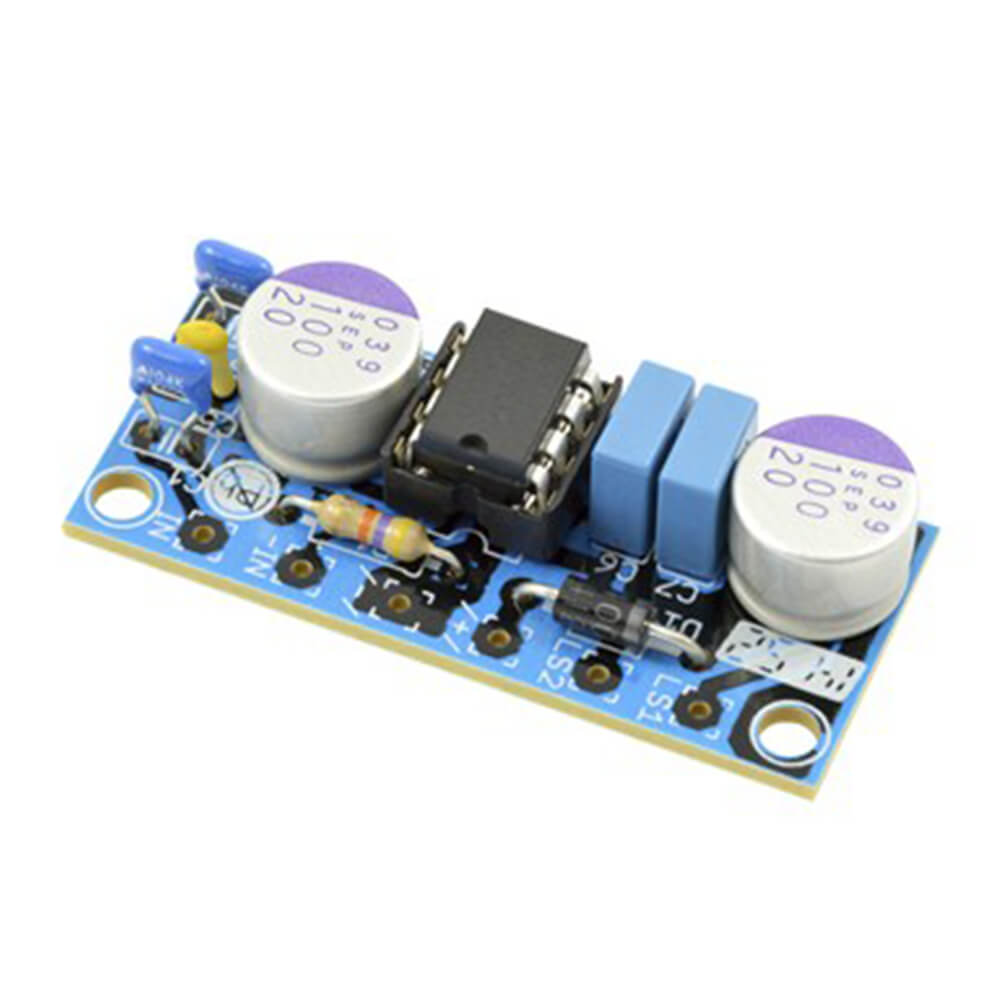

This tiny PCB measuring only 56(L) x 16W(mm) incorporates all the electronics for a 1 Watt amplifier. 6 to 9VDC operating voltage, 50mV input sensitivity, 8 ohm output and 20 to 25000Hz output frequency. Optional connection for a 10k ohm - 100K ohm logarithmic potentiometer (not included) for adjustable volume control. Build this kit in minutes! Kit supplied with PCB and all electronic components. Suitable power supply required extra (use MP-3146).

Product Specifications

• Kit Form : Quick Kit (circuit module only)
• Difficulty : Simple
• Estimated Construction Time : 15.0min
• Tools required : Soldering Iron
• Additional optional items : 10k ohm - 100k ohm logarithmic potentiometer
• PCB Width : 24.0mm
• PCB Length : 41.0mm
• Audio Device : Amplifier
• Signal Input Level : 50.0mV
• Output power : 1.0W
• Output impedence range : 8.0Ohm
• Audio frequency range : 20.0Hz, 25000.0Hz
