8 Channel 4K NVR Package Surv Camera System (4xPIR+2xfl)

Roll over image to zoom in Click on image to zoom

8 Channel 4K NVR Package Surv Camera System (4xPIR+2xfl)

On back order

ConcordSKU: 52141

Equipment Type : Surveillance Package (DVR + Camera)
IP Rating : IP66
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 6 - Powerful water jets
IP rating for : Camera
Storage Media Type : 3.5" SATA HDD
Included Capacity : 2.0TB
Maximum Capacity : 6.0TB
Expandable : true
LAN Standard : 1000BASE-T (10/100/1000Mbps)
LAN Port Type : RJ45
Compatible with current versions of Microsoft Windows : true
Compatible with current versions of Apple macOS : true
Dimensions for : Recorder
Length : 300.0mm
Width : 53.0mm
Height : 53.0mm
Depth : 227.0mm
PSU Powers : Receiver
DC Plugpack Voltage : 48.0V
Suitable PSU Included : true
PSU Powers : Camera
DC Plugpack Voltage : 12.0V
DC Current Draw : 420.0mA
Recording Resolution (Digital Input) : 4K UHD (3840 x 2160)
Frame Rate (Maximum per Channel) : 30.0fps
Recording Format : H.264 (MPEG4), H.265 (MPEG4)
· : 8 Channel 4K Network Video Recorder
· : 6 x 4K PIR IP Bullet Cameras
· : 6 x 18m Ethernet Cables
· : Mains Power Cable and Adaptor
· : USB Mouse
· : 1m HDMI Cable
· : 1m Network Cable
Supported USB Standards : USB 2.0, USB 3.0
USB Interface Functions : Mouse, Backup, Upgrade
Number of USB ports : 2.0 ports
Port Details : 1 x USB 2.0 + 1 x USB 3.0
Supported Display Resolution : 4K UHD (3840 x 2160)
Resolution Frequency : 1.0Hz
Type of Camera : Dome
Output Signal : IP - Wired
Resolution : 4K UHD (3840 x 2160)
Video Output Connection : RJ45
Included Lead Length : 18.0m
In-built Microphone : true
Camera Audio Output Connection : RCA
Lens Diameter : 3.6mm
Lens Angle : 96.0 Degrees
Sensor Size : 1/2.8 Inch
Sensor Type : CMOS
Frame Rate : 1.0fps, 15.0fps
Minimum Illumination : 0.05lux
Infrared Enabled : true
Infrared Range : 30.0m
Thermal Detection PIR Sensor : true
Thermal Detection Range : 10.0m
Video Channels (Direct Connection) : 8.0ch
Video Channels (IP Connection) : 8.0ch
Total Recording Channels : 8.0ch
Camera Connection : RJ45
Video Output (Monitor) : HDMI Type-A, D15 HD (VGA)
Video Output (Auxilliary/Fixed Display) : HDMI Type-A
Audio Outputs : 1.0ch
Audio Connection : RCA
Maximum Recording Time : 365.0d
Max Recording Time Details : When using thermal detection
Motion Sensing : true
Cameras Included : 6.0pc
Cables Included : 6.0pc
Cable Length : 18.0m
Dimension for : Camera
Height : 100.0mm
Depth : 155.0mm
Diameter : 100.0mm
Dimension details : Bullet Camera
Length : 140.0mm
Diameter : 70.0mm
Apps to suit : Apple iOS, Android

Price:

£839.95

Stock:

Sold out

Quantity:

Share this product

4K UHD 2TB Internal Storage 4K UHD

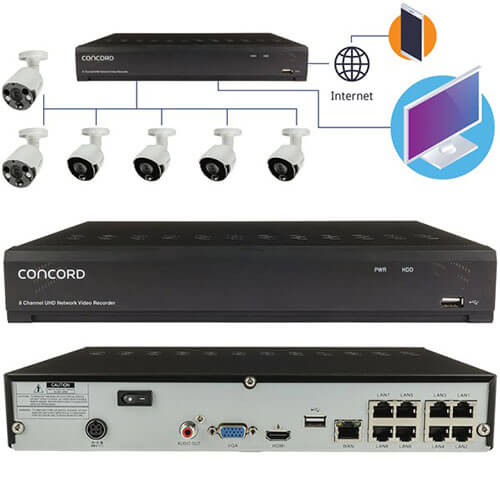

This Network Video Recorder uses ethernet cables to carry video audio and power to each IP camera. This saves you from messy wiring and multiple power supplies.

The IP cameras can also be connected to your wired network allowing you to have cameras hundreds of metres away if you have a large property without impacting the image quality.

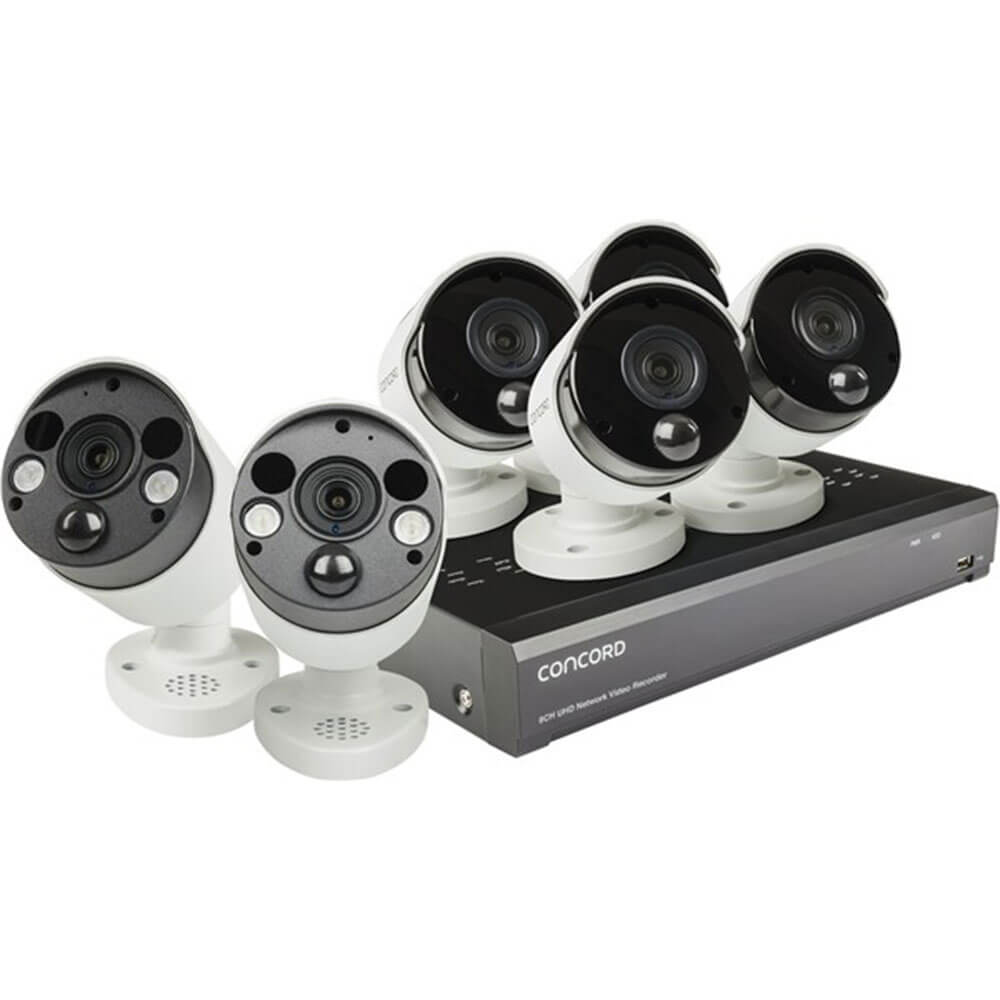

The kit includes six weatherproof Ultra HD bullet cameras with built-in infrared LEDs for night vision up to 30m and Thermal Detect Technology to help prevent false triggers.

The NVR includes a built-in 2TB HDD and supports FTP storage or Dropbox(TM) Cloud Storage to safeguard your data and push notifications to send alerts to your phone.

The NVR features Intelligent Analysis to help search the video files more efficiently and Perimeter Intrusion Detection Line Crossing Detection Stationary Object Detection Pedestrian Detection Face Detection and Cross Counting.

Watch live or playback video on your HDTV or LCD monitor via HDMI or VGA or login remotely via your Apple or Android compatible Smartphone or Tablet using the free app.

Connecting your Smartphone is made easy using Peer-to-Peer (P2P) technology and scanning a QR code with the app.

A USB mouse is included to navigate the on-screen menus, and there is a second USB 2.0 port that allows you to save recordings to a USB thumb drive for sharing or viewing on other devices, as well as uploading firmware updates.

CONCORD CNK8868PFA-A

Features:
