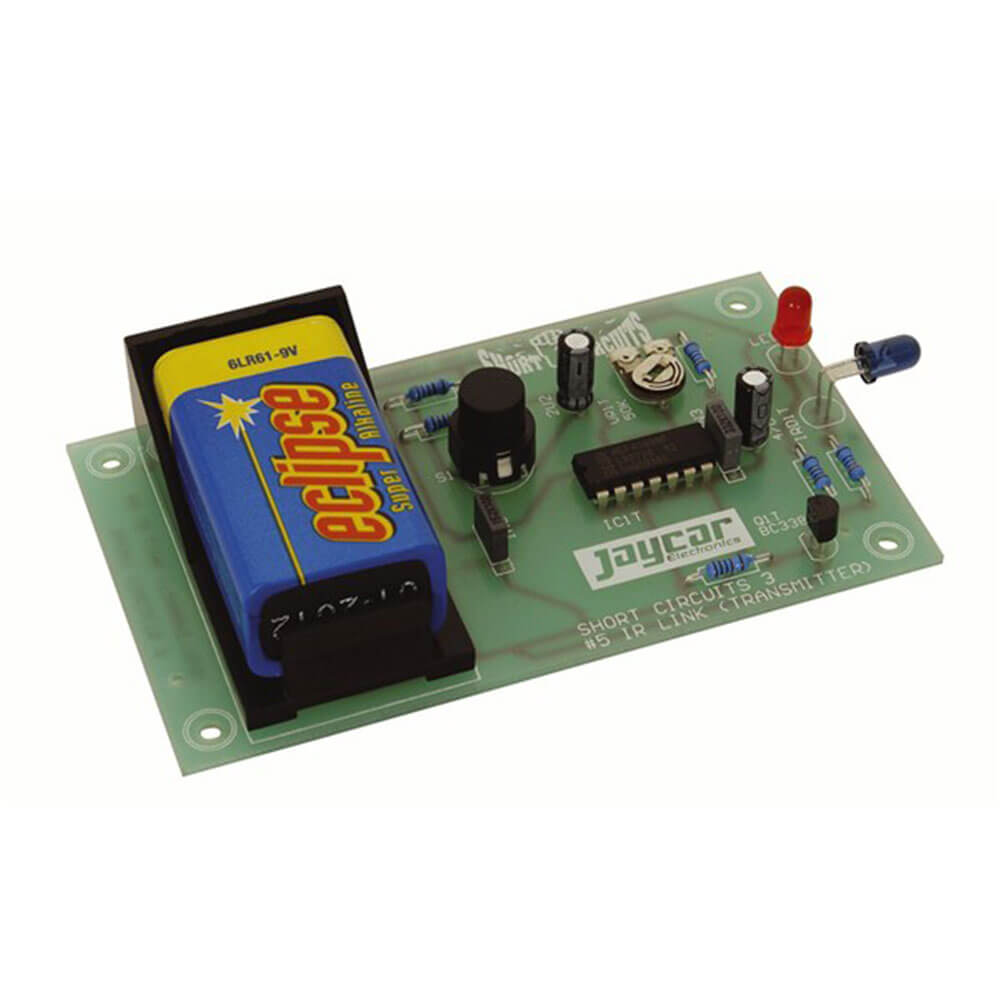

Short Circuits Three Project #5 Infrared Remote Link

Assembly Required

This two part kit uses an infrared beam to communicate between the controller and relay boards. When the control button is pressed the relay will switch on momentarily or toggle on/off. Kit includes PCBs, 9V battery and all electronic components. Receiver requires 12VDC power.

Product Specifications

• Kit Form : Short Form (circuit only)
• Kit Group : Short Circuit Series
• Difficulty : Simple
• Contains High Voltage Components : false
• Instructions Included : false
• PCB Width : 60.0mm
• PCB Length : 105.0mm
• Volume Number : Volume 3
• Project Number(s) : 5
