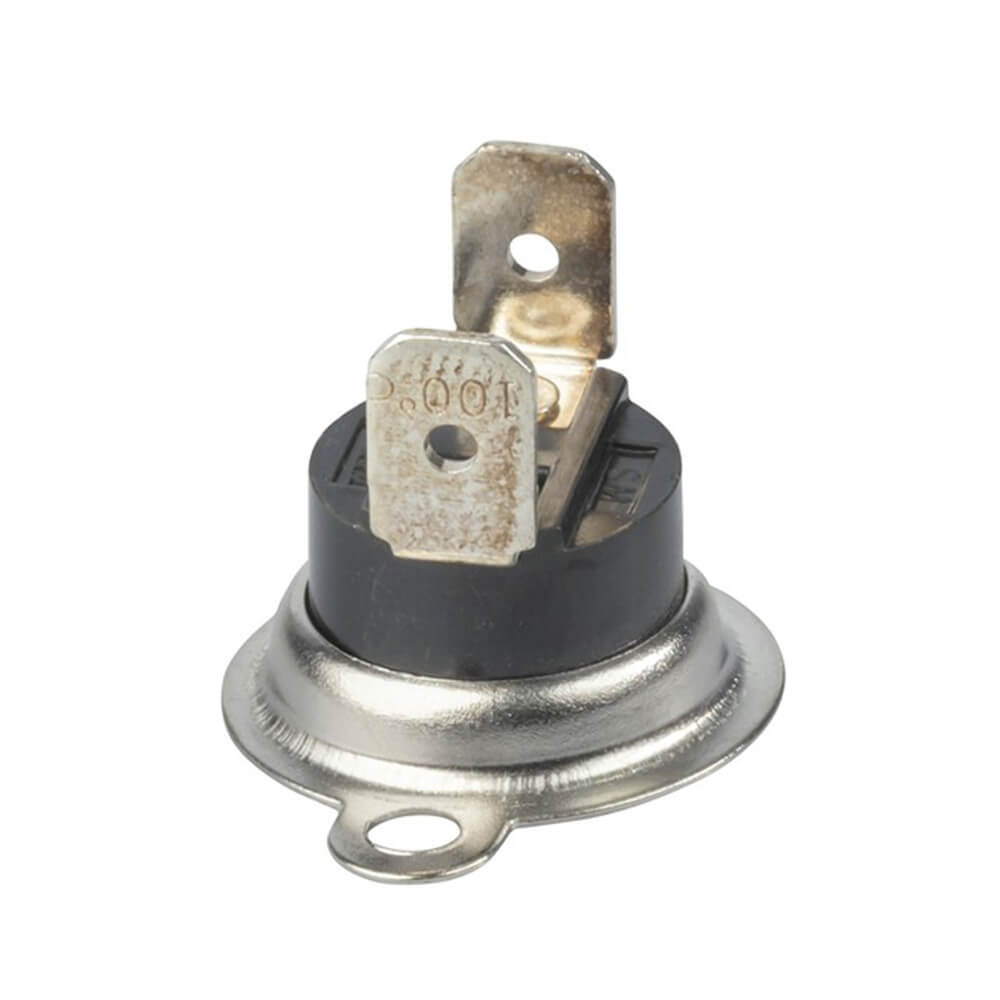

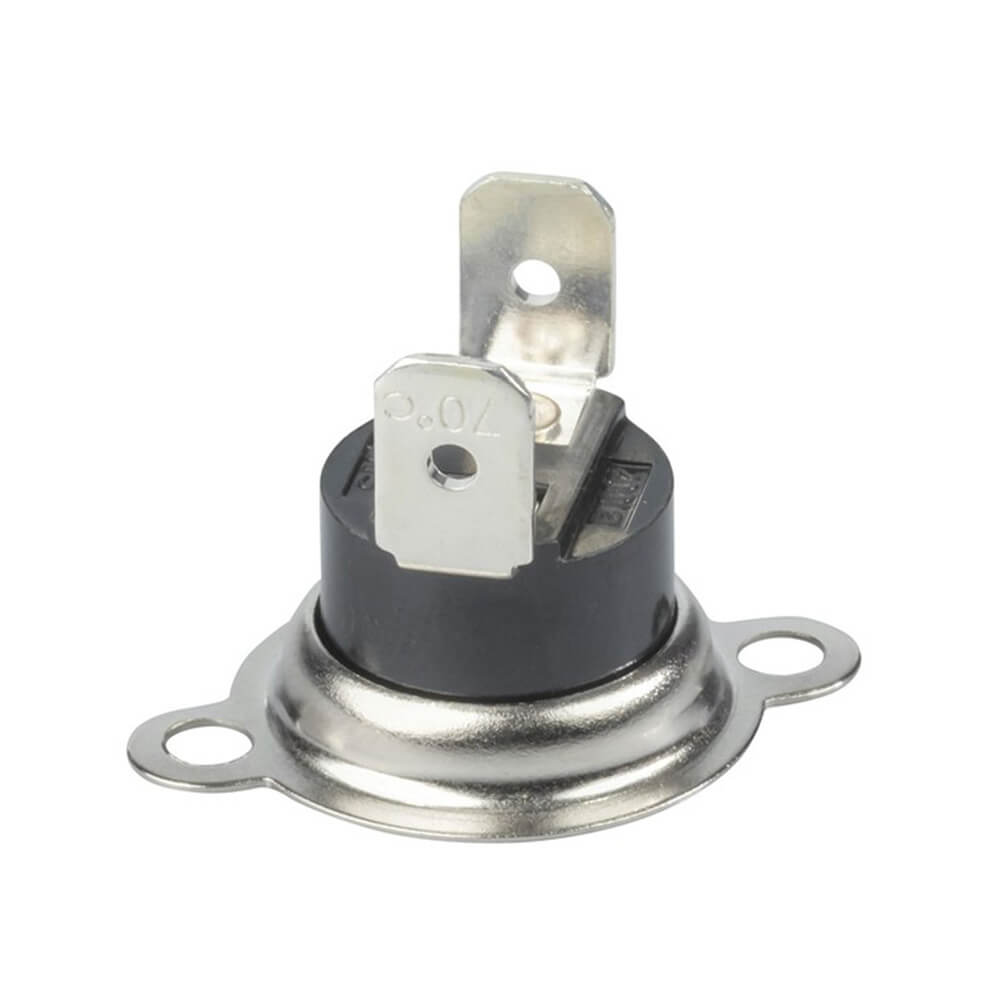

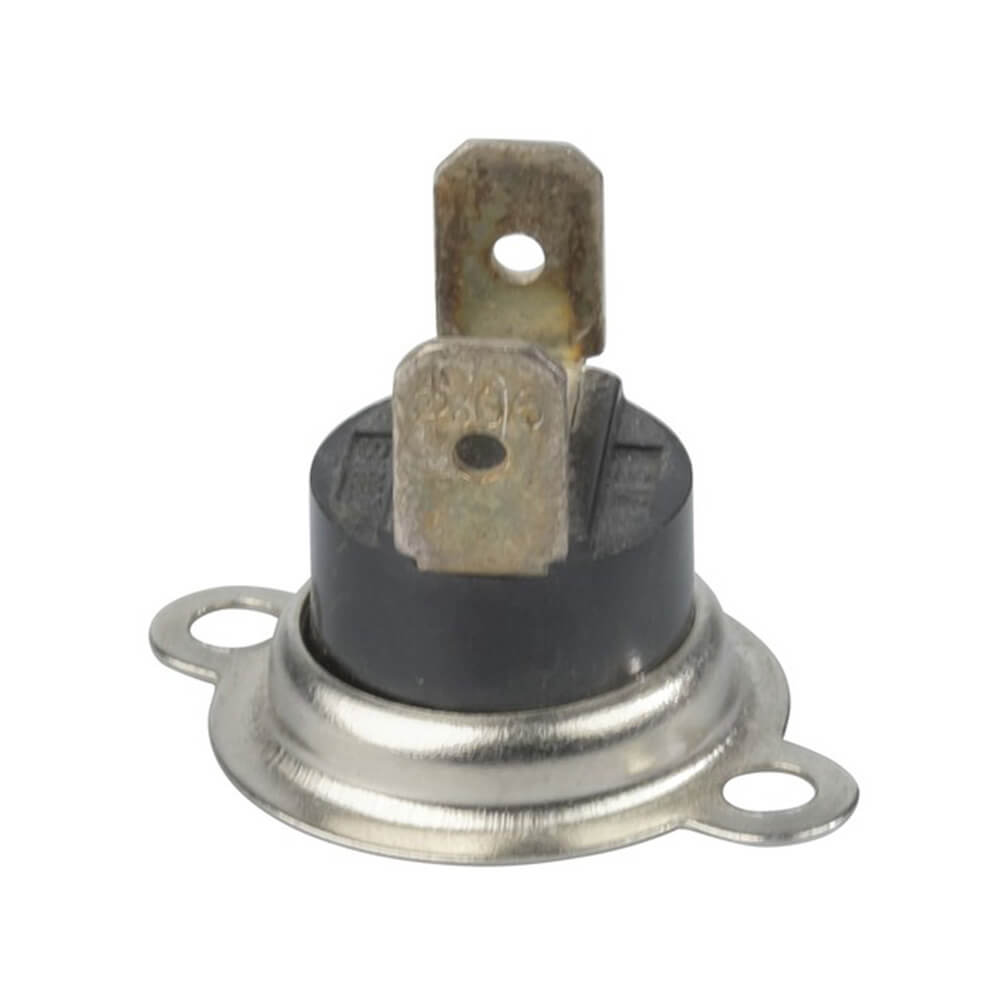

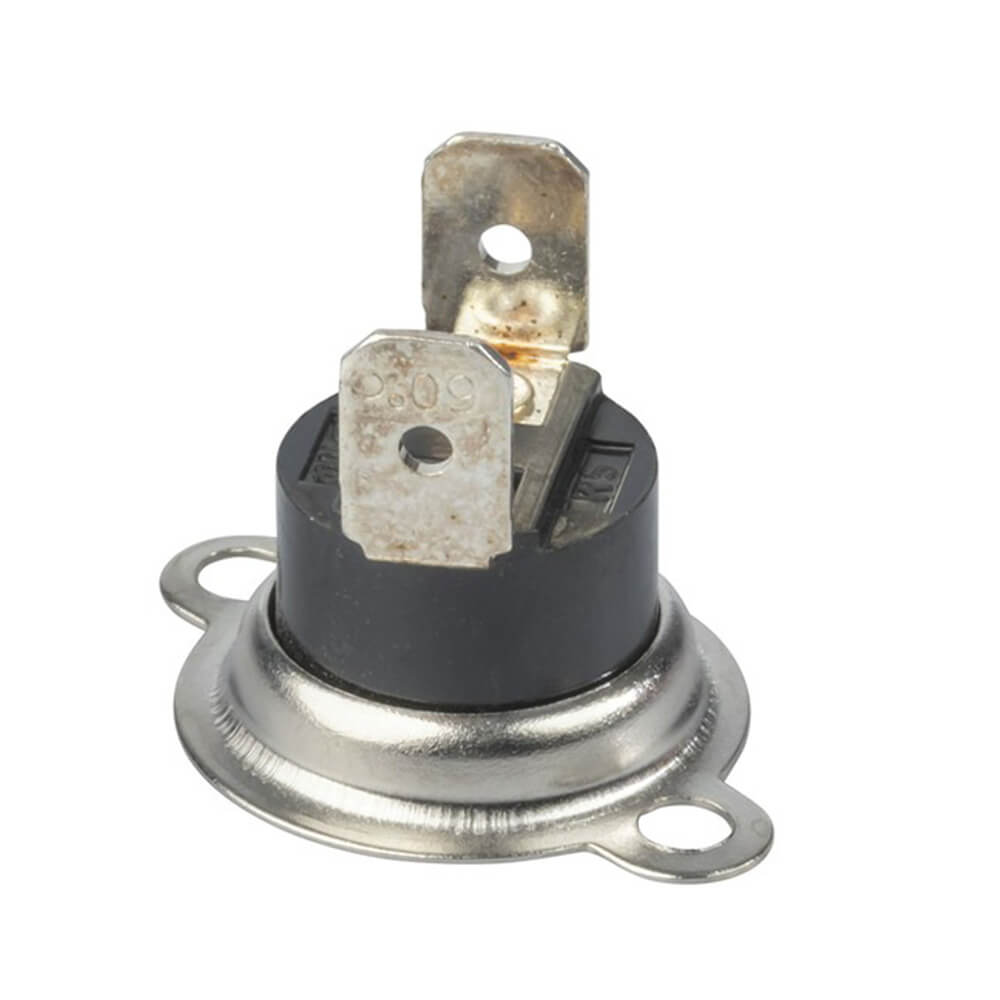

Thermal Circuit Breaker or Switch

This phenolic-housed thermostat attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.

Product Specifications

• Type of thermal switch or fuse : Thermal circuit breaker
• Thermal reset method : Automatic
• Thermal trip temperature : 100DegC
• Thermal reset temp : 85DegC
• Normally open or normally closed : Normally closed
• operating tolerance : +/- 5DegC (32VDC), +/- 8DegC (125VAC), +/-10DegC (250VAC)
• reset differential : 10DegC - 50DegC
• contact endurance : 32VDC-100mA, 125VAC-10A, 250VAC-6A
• operation cycles : 50000, 100000, 30000
• Height : 21.2mm
• Diameter : 30.3mm
