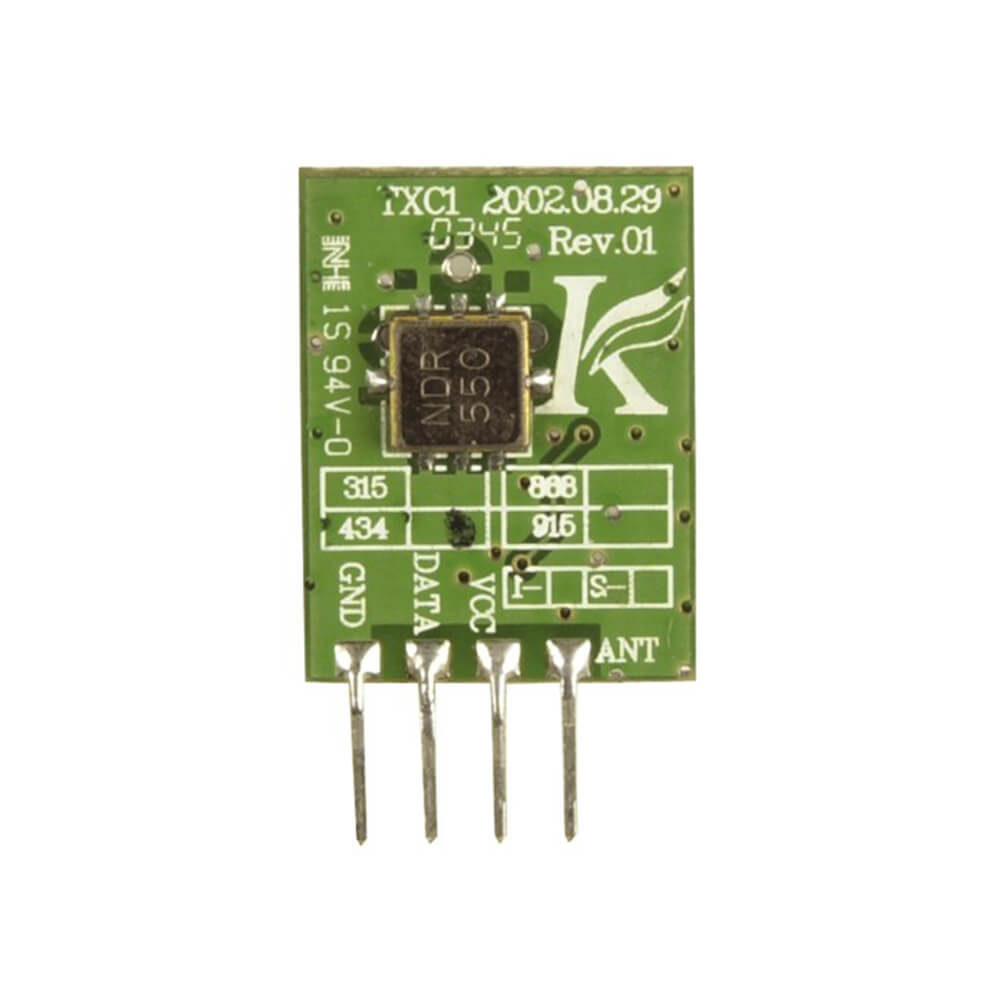

These are pre-built 433MHz wireless transmitter / receiver modules. They feature ASK encoding, and perform very well. They are ideal for devices using short data bursts such as remote controls, trigger pulses etc.
Specifications:
Output power: 3dBm.
Supply voltage: 3V.
Supply current: 10mA max.
Data rate: 300bps to 10kbps.
Transmitter Module: ZW-3100
Receiver Module: ZW-3102
Product Specifications
- Transmission frequency : 433.92MHz
- Width : 14.5mm
- Height : 18.5mm
- Packaged Volume : 0.23l
- Packaged Weight : 0.01kg
- Packaged Length : 13.4cm
- Packaged Width : 8.5cm
- Packaged Height : 2cm
- Optimum Input Current (Imax) (Th=27DegC) : 10A
- Optimum Input Voltage (Vmax) (Th=27DegC) : 3V
| Length : 13.4 cm |
Width : 8.5 cm |
| Height : 2 cm |
